Videoscopes

Mitcorp X600 HD videoscope

Name: Mitcorp X600 HD videoscope
Brand: Mitcorp
SKU: X600 HD

X600 HD

Dual 0° and 90° cameras in one probe.

Sale Rental

Price on request

X600 HDTechnical specifications

Display: 5" touchscreen, 800 × 480
Image / video: JPEG 1920 × 1080 / MP4 1920 × 1080
Probes: Ø 4.9 mm dual camera (1 and 3 m), Ø 3.9 mm articulating (1 to 2 m)
Articulation: 2- or 4-way, 180° (3.9 mm probes)

Request a quote Ask on WhatsApp

Overview

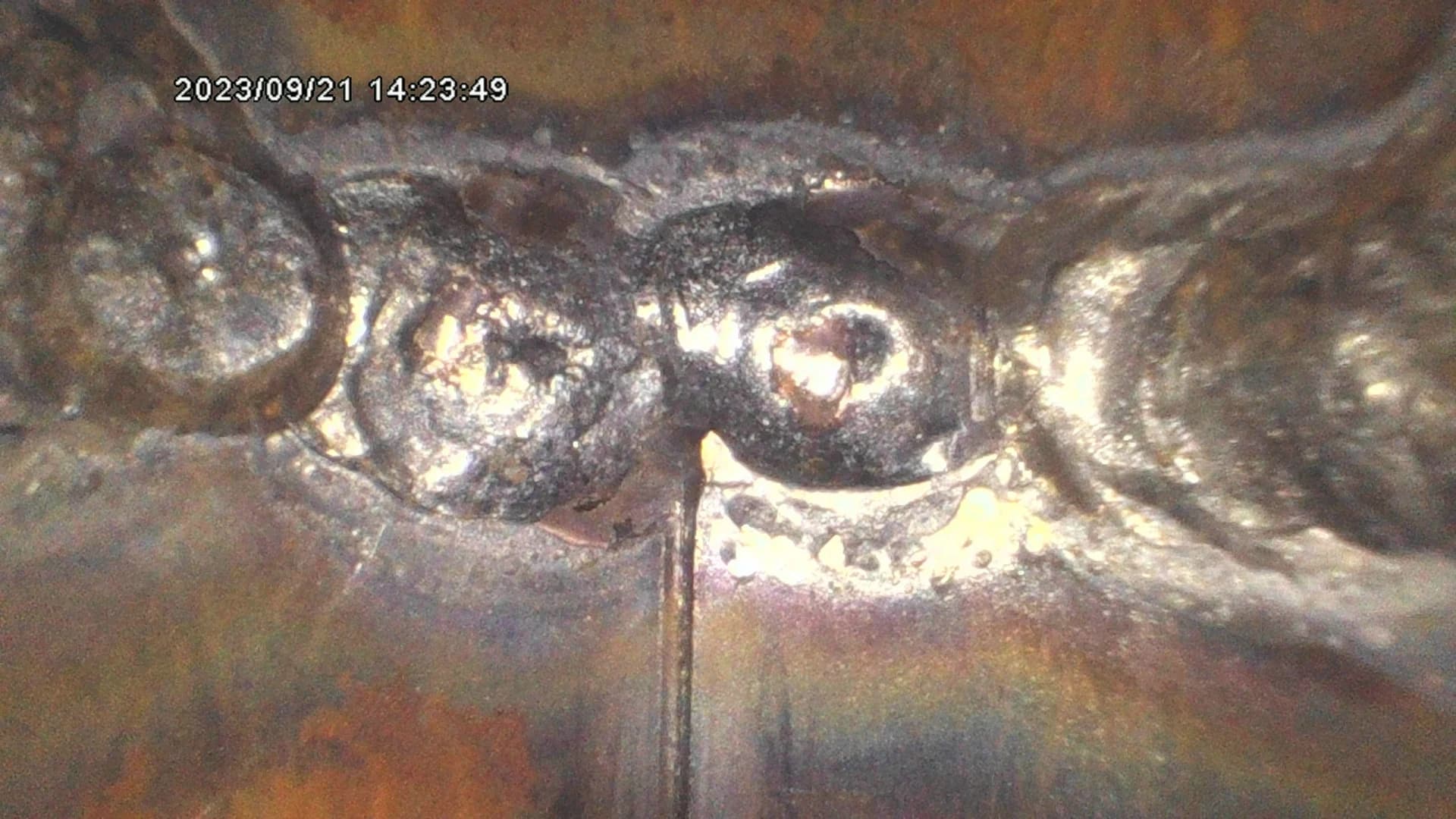

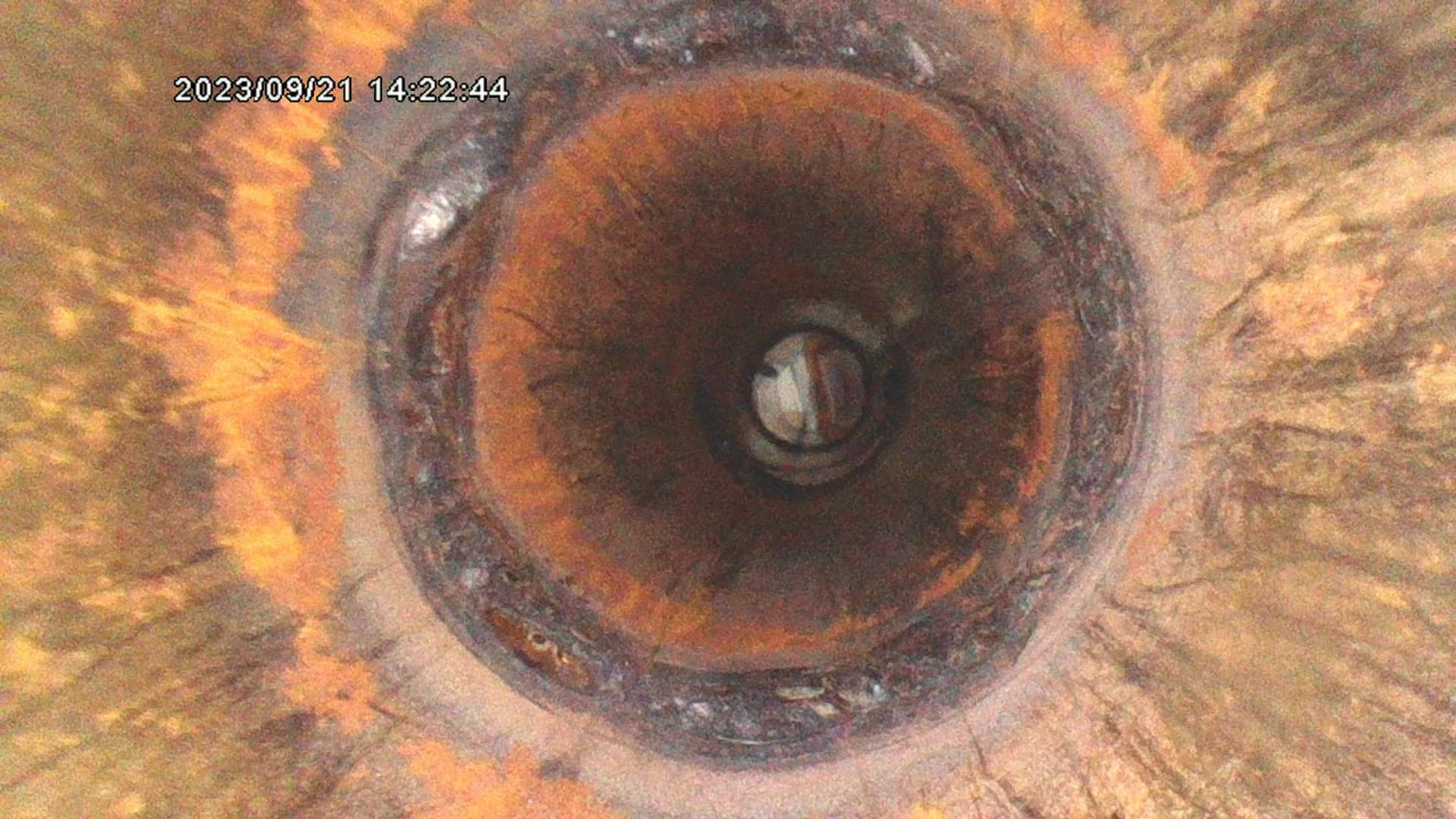

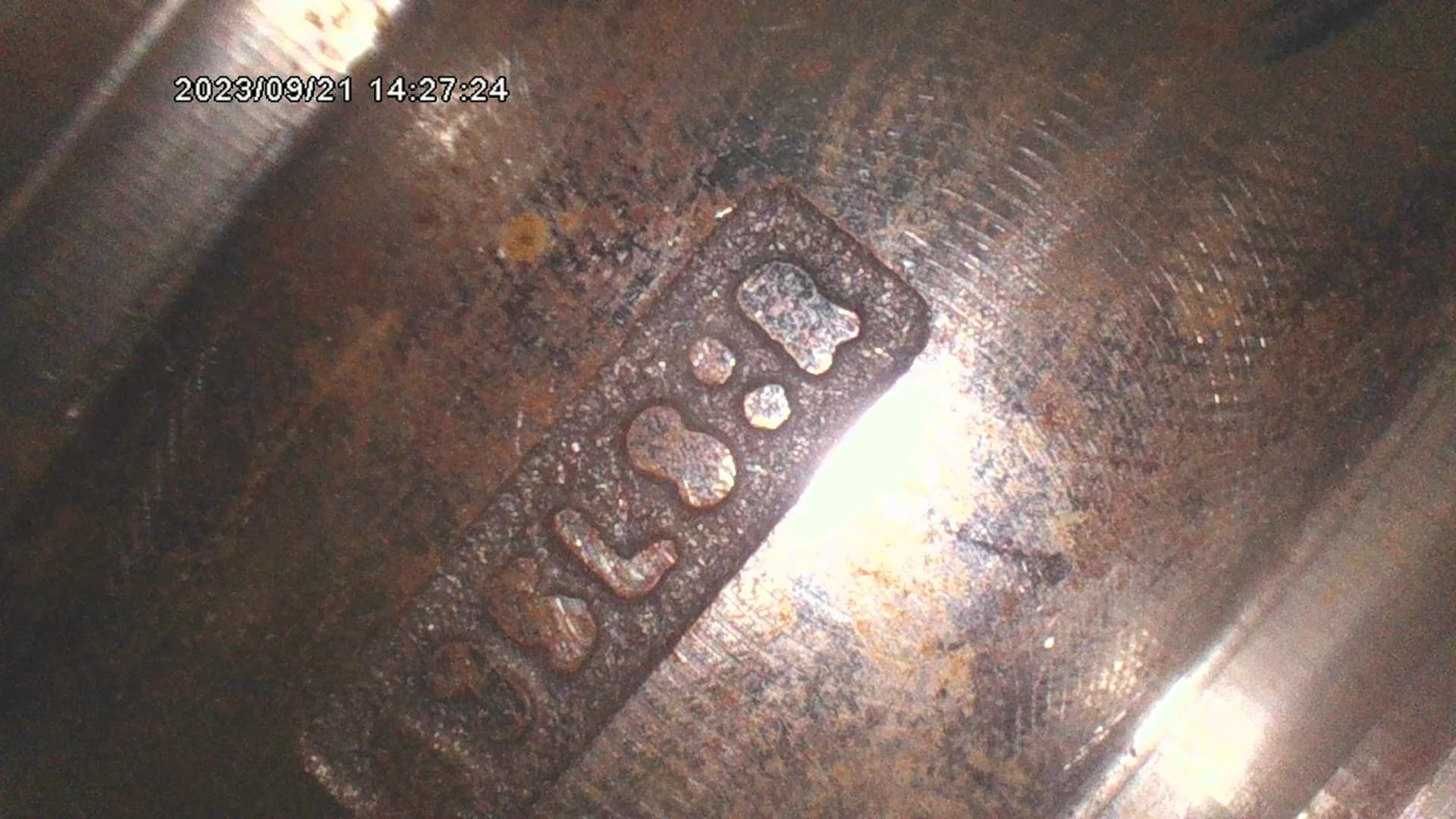

Portable True HD videoscope that captures 1920 × 1080 photos and video on a 5" anti-glare touchscreen.

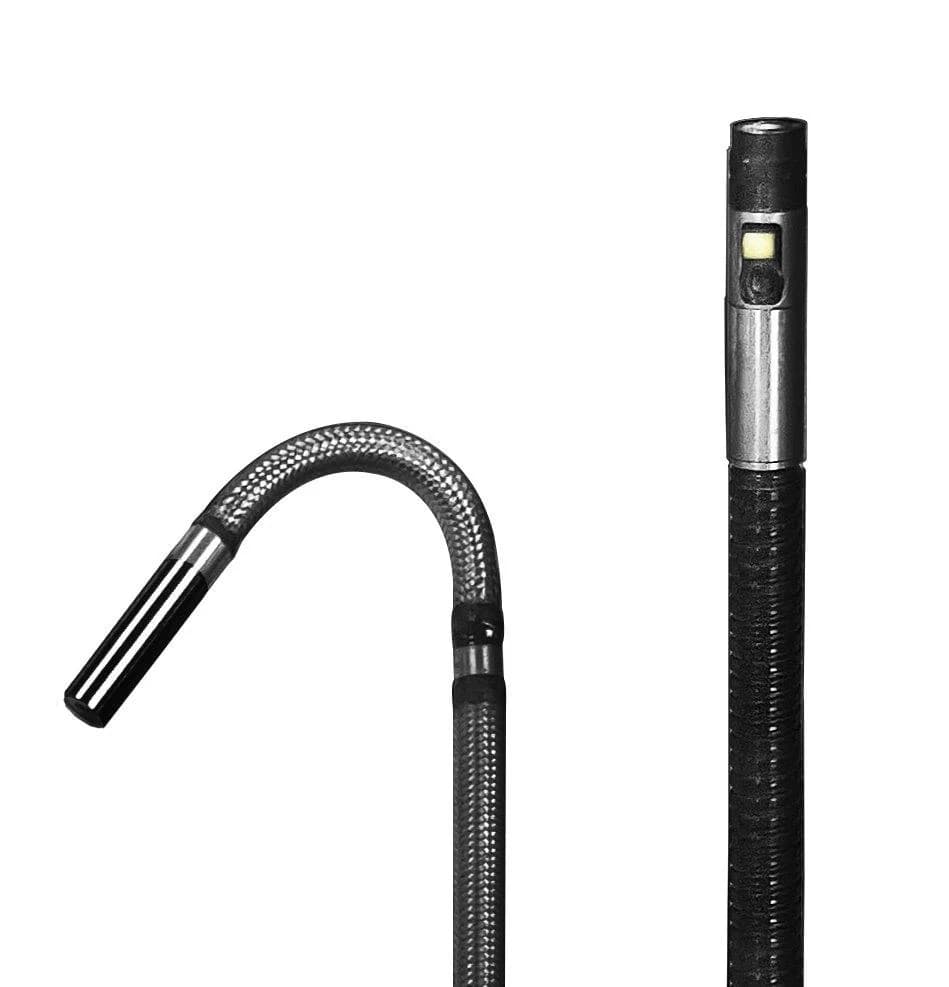

It takes 4.9 mm probes with two cameras in the same tip, 0° and 90°, switched with one touch, or 3.9 mm probes with 180° 2-way or 4-way articulation steered with the thumb. All tips are IP67.

Key features

5" anti-glare touchscreen
Dual-camera 0° / 90° probe or 2- and 4-way articulating probes
IP67 camera head and probe tube
About 4 h of work, 2.5 h USB-C charge
Survives 1 m drops

Technical specifications

Display	5" touchscreen, 800 × 480
Image / video	JPEG 1920 × 1080 / MP4 1920 × 1080
Probes	Ø 4.9 mm dual camera (1 and 3 m), Ø 3.9 mm articulating (1 to 2 m)
Articulation	2- or 4-way, 180° (3.9 mm probes)
Field of view	90°
Depth of field	10 – 100 mm
Battery	Rechargeable, ~4 h, 2.5 h charge
Outputs	Micro HDMI, USB-C (data and charging)
Storage	microSD up to 64 GB
Protection	Unit IP54, probes IP67, 1 m drop
Probe temperature	−10 to 60 °C

Specifications from Mitcorp's official brochure.

Compatible probes

Model	Ø	Length	View	Field of view	Depth of field	Resolution	Articulation
`49HD-FS-1M / 3M-SR`	4.9 mm	1 m · 3 m	Dual camera 0° / 90°	90°	10 – 100 mm	1920 × 1080	Semi-rigid, no articulation
`39HD2W-F-1M-SS`	3.9 mm	1 m	Front	90°	10 – 100 mm	1920 × 1080	2-way, 180°
`39HD4W-F-1.5M / 2M-SS`	3.9 mm	1.5 m · 2 m	Front	90°	10 – 100 mm	1920 × 1080	4-way, 180°
